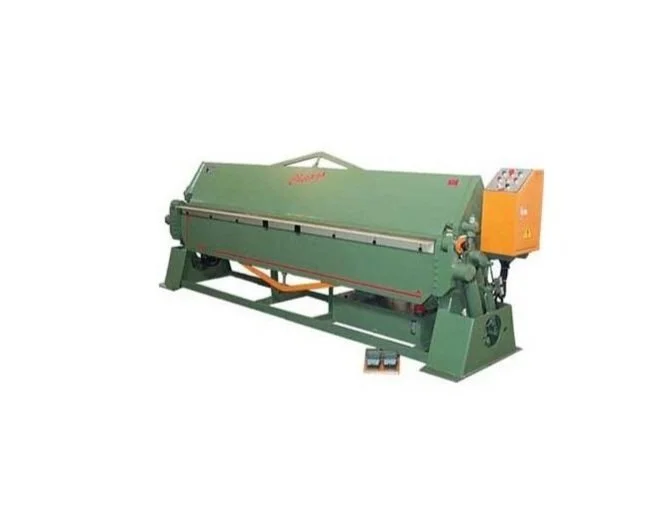

One general purpose motor with direct mount hydraulic pump for operation on 220/440 volts, 3 phase, 60 hertz, with 110 volt control circuit (please specify voltage). STANDARD EQUIPMENT on each Chicago Hydraulic Power Bending Brake:
Removable Nose Bar. Bolted Bottom Bar. Compact Hydraulic Power Unit. Angle Bar. Insert Bar. Oil Level Sight Gauge. Control Panel Features:
On/Off Key Selector Switch. Bending Leaf Up/Down Pushbuttons. Clamp/Unclamp Pushbuttons. Motor Start Pushbutton. Emergency Stop Push Button. Automatic Cycle Push Button. Electric Foot Switch – Clamps and unclamps Top Leaf. Allows operator mobility when loading and unloading material. Bend Angle Dial Adjustment – Adjustable cam and scale that read in degrees, actuates an electric limit switch for bend angle control and repeatability of bends. Material Thickness Dial Adjustment – Reference scale for speedier set up when adjusting clamping pressure. Back Gauge – 25 1/2″ travel, rack and pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm scales. Optional:
Power Back Gauge with digital readout – electric push button operation. Inch Control – Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion. Automatic Cycle – Actuating the “Automatic Pushbutton” clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf. Multiple unit sizes and variations available upon request.
Condition: NEW
Type: BENDING BRAKE
Manufacturer: CHICAGO
Back Gauge:
25 1/2 inch travel Extension Fingers Open End Fingers Fingers to meet specific requirements Radius Nose Bars Insert Bar – 1/4 inch Multiple unit sizes and variations available upon request.
Condition: NEW
Type: BOX AND PAN
Manufacturer: CHICAGO
