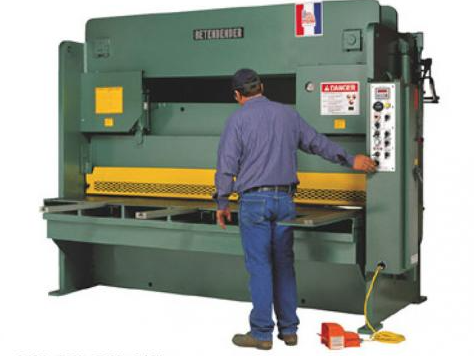

The Betenbender 1" Hydraulic Shear is built for heavy-duty metal cutting applications, delivering the power, accuracy, and durability required in demanding fabrication environments. Designed for efficient material handling and precise cutting performance, this hydraulic shear provides reliable operation for a wide range of sheet metal processing tasks.
A sturdy backgauge and adjustable rake angle system help minimize twist and distortion during cutting operations. The adjustable rake angle allows operators to optimize performance when cutting heavier materials while maximizing the machine's cutting capacity. A 4-foot squaring arm with a recessed scale enables quick, accurate material positioning and measurement.
The machine is equipped with single-piece upper and lower high-carbon, high-chrome shock-resistant knives. Each knife features four usable cutting edges, providing extended blade life and consistently clean cuts. Easy blade gap adjustment allows for precise cutting across a variety of material types and thicknesses.
The electrical system meets NFPA 79 standards and ANSI B11.4 construction requirements. Standard equipment includes disconnect switches, magnetic starters, 110/120V controls, and 208-230/460V three-phase electrical service, with additional electrical options available.
The precision backgauge system is capable of shearing 1/8" (10-gauge) material with the width of the off-cut portion maintained within ±0.005" of the backgauge setting, ensuring excellent repeatability and accuracy.
Condition: NEW
Type: HYDRAULIC SHEAR
Manufacturer: BETENBENDER
Model: 1" HYDRAULIC SHEAR
The Betenbender 1" Hydraulic Shear is built for heavy-duty metal cutting applications, delivering the power, accuracy, and durability required in demanding fabrication environments. Designed for efficient material handling and precise cutting performance, this hydraulic shear provides reliable operation for a wide range of sheet metal processing tasks.
A sturdy backgauge and adjustable rake angle system help minimize twist and distortion during cutting operations. The adjustable rake angle allows operators to optimize performance when cutting heavier materials while maximizing the machine's cutting capacity. A 4-foot squaring arm with a recessed scale enables quick, accurate material positioning and measurement.
The machine is equipped with single-piece upper and lower high-carbon, high-chrome shock-resistant knives. Each knife features four usable cutting edges, providing extended blade life and consistently clean cuts. Easy blade gap adjustment allows for precise cutting across a variety of material types and thicknesses.
The electrical system meets NFPA 79 standards and ANSI B11.4 construction requirements. Standard equipment includes disconnect switches, magnetic starters, 110/120V controls, and 208-230/460V three-phase electrical service, with additional electrical options available.
The precision backgauge system is capable of shearing 1/8" (10-gauge) material with the width of the off-cut portion maintained within ±0.005" of the backgauge setting, ensuring excellent repeatability and accuracy.
Condition: NEW
Type: HYDRAULIC SHEAR
Manufacturer: BETENBENDER
Model: 1" HYDRAULIC SHEAR
