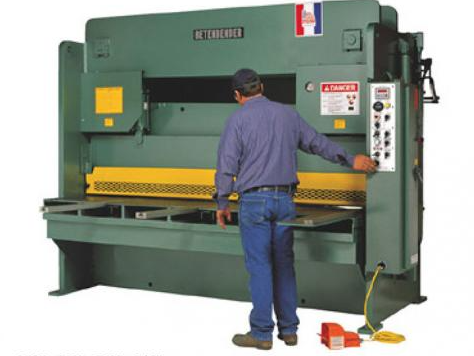

The Betenbender 3/4 Hydraulic Shear is a heavy-duty metal cutting solution designed to deliver accurate, clean cuts with exceptional durability and performance. Built for demanding fabrication environments, this hydraulic shear combines powerful cutting capability with user-friendly controls and precision material handling features.
Convenient push-button and switch controls are positioned within easy reach of the operator. A fully guarded, two-position 110V foot switch allows the cutting stroke to be interrupted at any point during the cycle, providing added control and safety during operation.
Material handling is simplified with a sturdy backgauge and adjustable rake angle system designed to minimize twist and distortion. The adjustable rake angle allows operators to optimize cutting performance for heavier materials while extending the machine's maximum cutting capacity. A 4-foot squaring arm with a recessed scale provides quick and accurate material positioning for improved productivity.
The shear is equipped with single-piece upper and lower high-carbon, high-chrome shock-resistant knives featuring four usable cutting edges for extended blade life and consistently clean cuts. Easy blade gap adjustment allows the machine to accommodate a wide variety of material types and thicknesses while maintaining cutting precision.
The electrical system meets NFPA 79 standards and ANSI B11.4 construction requirements. Standard equipment includes a disconnect switch, magnetic starters, 110/120V controls, and 208-230/460V three-phase electrical service, with additional options available.
The precision backgauge system allows the machine to shear 1/8" (10-gauge) material with the off-cut width held within ±0.005" of the backgauge setting, providing excellent repeatability and accuracy.
Condition: NEW
Type: HYDRAULIC SHEAR
Manufacturer: BETENBENDER
Model: 3/4 HYDRAULIC SHEAR
The Betenbender 3/4 Hydraulic Shear is a heavy-duty metal cutting solution designed to deliver accurate, clean cuts with exceptional durability and performance. Built for demanding fabrication environments, this hydraulic shear combines powerful cutting capability with user-friendly controls and precision material handling features.
Convenient push-button and switch controls are positioned within easy reach of the operator. A fully guarded, two-position 110V foot switch allows the cutting stroke to be interrupted at any point during the cycle, providing added control and safety during operation.
Material handling is simplified with a sturdy backgauge and adjustable rake angle system designed to minimize twist and distortion. The adjustable rake angle allows operators to optimize cutting performance for heavier materials while extending the machine's maximum cutting capacity. A 4-foot squaring arm with a recessed scale provides quick and accurate material positioning for improved productivity.
The shear is equipped with single-piece upper and lower high-carbon, high-chrome shock-resistant knives featuring four usable cutting edges for extended blade life and consistently clean cuts. Easy blade gap adjustment allows the machine to accommodate a wide variety of material types and thicknesses while maintaining cutting precision.
The electrical system meets NFPA 79 standards and ANSI B11.4 construction requirements. Standard equipment includes a disconnect switch, magnetic starters, 110/120V controls, and 208-230/460V three-phase electrical service, with additional options available.
The precision backgauge system allows the machine to shear 1/8" (10-gauge) material with the off-cut width held within ±0.005" of the backgauge setting, providing excellent repeatability and accuracy.
Condition: NEW
Type: HYDRAULIC SHEAR
Manufacturer: BETENBENDER
Model: 3/4 HYDRAULIC SHEAR
