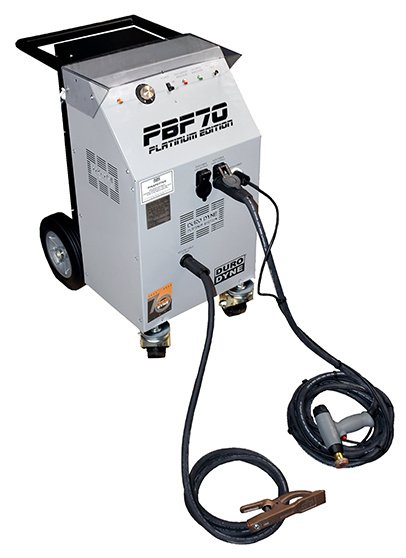

PBF70 PINSPOTTER W/PACKAGING

THE PBF70 PORTABLE PINSPOTTER FEATURES A MULTI-TAP TRANSFORMER, ALLOWING IT TO

DELIVER PRECISE, TIMED, LOW VOLTAGE TO THE WELDING TIP FOR PRECISION WELDS. THIS

MACHINE WILL WELD PINS FROM ½ INCH TO 4 INCHES LONG ON STEEL FROM 26 TO 16

GAUGE. A NEW, INNOVATIVE, ERGONOMIC, HIGH IMPACT GUN ALLOWS MORE FLEXIBILITY

DURING OPERATION. PROVEN SOLID-STATE WELD CONTROL CIRCUITRY GUARANTEES YEARS OF

RELIABLE, TROUBLE-FREE SERVICE IN YOUR SHOP.

HEAVY-DUTY CASTER WHEELS ALLOW EASY MOVEMENT IN THE SHOP

HI/LO POWER SELECTION VIA TWO WELD CABLE POWER PORTS PROVIDES ADJUSTMENT FOR

DIFFERENT WELDING CONDITIONS

STANDARD 16 FOOT GUN CABLE AND 11 FOOT GROUND CABLE.

GUN CABLE IS EXTENDABLE TO 24 FEET WITH OPTIONAL EXTENSION SET (ITEM # 27054)

ERGONOMIC, HIGH IMPACT WELD GUN ALLOWS MORE FLEXIBILITY

“EASY READ” WELD TIMER ADJUSTMENT FOR PRECISE CONTROL

PANEL MOUNTED TEST SWITCH AND INDICATOR LIGHTS FOR EASY TROUBLESHOOTING

Condition: NEW

Type: PINSPOTTER

Manufacturer: DURO DYNE

Model: PBF70

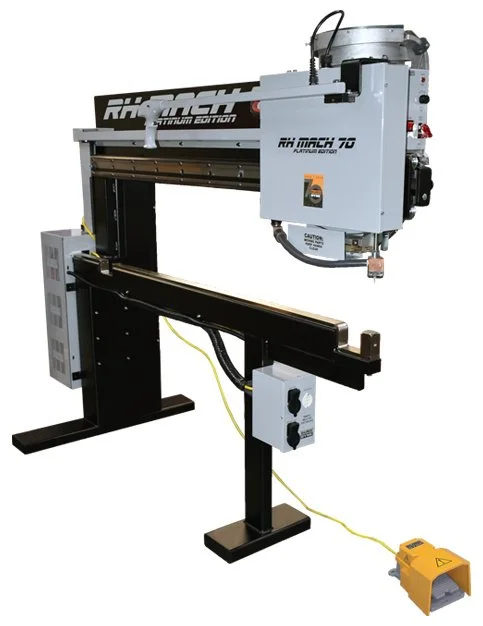

RH MACH70 HI-CAP PINSPOTTER

DESCRIPTION:

THE DURO DYNE RH MACH 70 PINSPOTTER FEATURES A REDESIGNED TRANSFORMER FOR A WIDER RANGE OF WELDING CAPABILITIES, A HEAVY-DUTY VIBRATOR BOWL FOR AUTOMATIC PIN FEEDING, AND THE ABILITY TO WELD INSULATION PINS UP TO 4 INCHES LONG. THE ROLLING-HEAD DESIGN ALLOWS THE OPERATOR TO MOVE THE WELDING TROLLEY INSTEAD OF THE DUCTWORK, REDUCING MATERIAL HANDLING AND IMPROVING PRODUCTIVITY. THE MACHINE ALSO INCLUDES A TDC/TDF NOTCH FOR DUCTWORK AND CAN BE CONVERTED TO A HANDHELD PINSPOTTER WITH AN OPTIONAL GUN AND GROUND CABLE KIT.

SPECIFICATIONS:

TYPE: ROLLING HEAD AUTOMATIC PINSPOTTER

WELDING CAPACITY: UP TO 4" INSULATION PINS ON 18-GAUGE SHEET METAL

AUTOMATIC FEED CAPACITY: 0.5" TO 2" PINS

VIBRATOR BOWL CAPACITY: APPROXIMATELY 1,000 ONE-INCH PINS

THROAT DEPTH: 60"

INPUT VOLTAGE: 230V, 60 HZ, SINGLE PHASE

ELECTRICAL SERVICE REQUIRED: 60 AMP

AIR REQUIREMENT: 80 PSI

TRANSFORMER: MULTI-TAP TRANSFORMER WITH 8 POWER SETTINGS

CONTROLS: ADJUSTABLE WELD AND DWELL TIME CONTROLS

FEED SYSTEM: HEAVY-DUTY AUTOMATIC VIBRATOR BOWL

OPTIONAL ACCESSORIES: FOOT PEDAL, BALL TRANSFER TABLES, 10' HAND GUN AND GROUND CABLE KIT FOR HANDHELD OPERATION, MACHINERY LIFT KIT

OVERALL DIMENSIONS: WIDTH: 81", DEPTH: 34", HEIGHT: 61"

FEATURES:

FLOATING UPPER WELD TIP ASSEMBLY FOR INCREASED TIP AND CABLE LIFE

SILICONE WELD CABLE FOR IMPROVED GROUNDING AND DURABILITY

AIRLESS VIBRATOR SENSOR REDUCES NOISE AND AIR CONSUMPTION

PNEUMATIC BRAKE LOCKS ROLLING ASSEMBLY DURING WELD CYCLE

ELECTRONIC FEED-TRACK SENSOR MAINTAINS PROPER PIN FEED

PRECISION HARDENED TRACK SYSTEM FOR SMOOTH TROLLEY MOVEMENT

LED LIGHT BAR

TDC/TDF DUCT NOTCH BUILT INTO SUPPORT BAR

AUXILIARY GUN AND GROUND CABLE CONNECTION FOR HANDHELD WELDING CAPABILITY

CONDITION: NEW

TYPE: PINSPOTTER

MANUFACTURER: DURO DYNE

MODEL: RH MACH 70

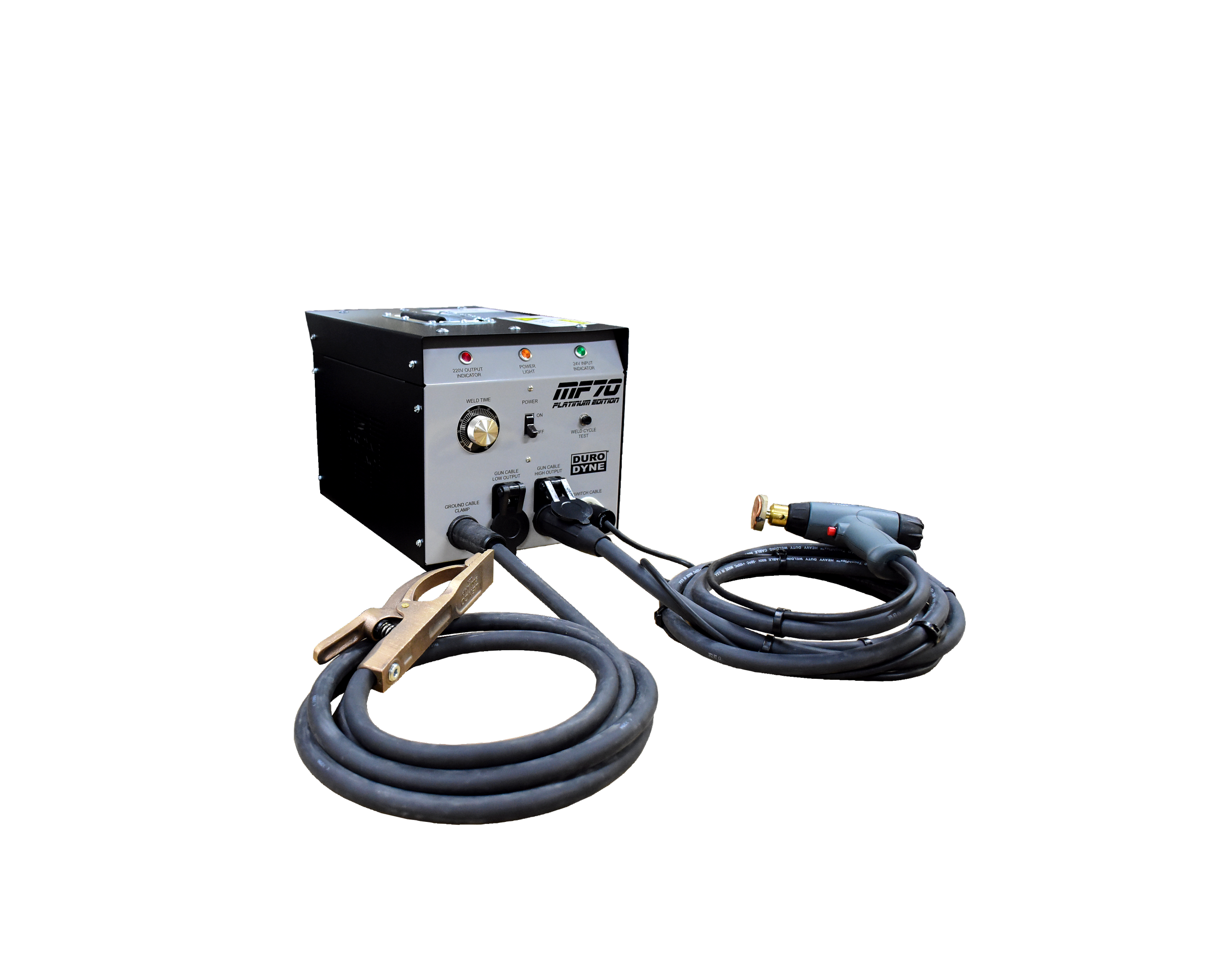

The Platinum Edition MF70 has been developed from over 30 years of portable pinspotter history at Duro Dyne...and now has a new look to celebrate our 70th Anniversary! The specially designed welding transformers allow it to deliver precisely timed welding to the gun tip, with more power than previous models. The MF70 has a compact design for easy handling, fitting anywhere in a shop.

The MF70 will weld pins from 1/2 inch to 4 inches long on steel from 26 to 16 gauge. Proven solid-state weld control circuitry guarantees years of reliable, trouble-free service in your shop.

Condition: NEW

Type: PINSPOTTER

Manufacturer: DURO DYNE

Model: MF-70

NEW DURO DYNE PLATINUM EDITION FPP70 CONVERSION PLATFORM PINSPOTTER

The latest breakthrough from the innovators of insulation fastening is the Platinum Edition FPP70, a pinspotter platform that enhances the capabilities of a compact pinspotter. The FPP70 works in conjunction with the Duro Dyne MF70 compact pinspotter (sold separately) to allow it to be utilized as both a hand held pinspotter and a fixed head pinspotter. This provides the customer with greater capabilities at a lower cost. The FPP70 requires 110 volts and 80 PSI in addition to the power required by the MF70 (208-230 VAC single phase with 60 amp circuit protection). Please note the FPP70 will not work if not powered by an MF Pinspotter.

Condition: NEW

Type: PINSPOTTER

Manufacturer: DURO DYNE

Model: FPP70

The LSU Advanced Liner Sizer will help size and cut duct liner more efficiently than ever thought possible with a hand operated machine. It's enhanced features, make it possible to cut cotton fiber insulations, filter media, rubberized products and other unusual materials. The cross cut and slitter blades are mechanically gear driven to spin while cutting. This spinning action shears the material to create precise cuts in the most difficult of substances.

Condition: NEW

Type: LINER SIZER

Manufacturer: DURO DYNE

The PLSU2 is the latest in Automatic Liner Sizer cutters for the HVAC Industry. The gear driven slitter and a pulley driven crosscut blade create a powerhouse to tackle all specialty insulations. This new cutting action will allow the PLSU2 to accommodate virtually all insulation types on the market including closed cell products, cotton fiber, Neoprene, Elastomeric Foam & more.

Condition: NEW

Type: INSULATION CUTTER

Manufacturer: DURO DYNE

Model: PLSU2

The GBAC applies Duro Dyne WIT or WSA water base adhesive to insulation in preparation for application to sheet metal. It requires 110v service fused for 15 amps. A source of air is required. Specify the direction of work flow when ordering.

Condition: NEW

Type: ADHESIVE APPLICATOR

Manufacturer: DURO DYNE

Model: GBAC
