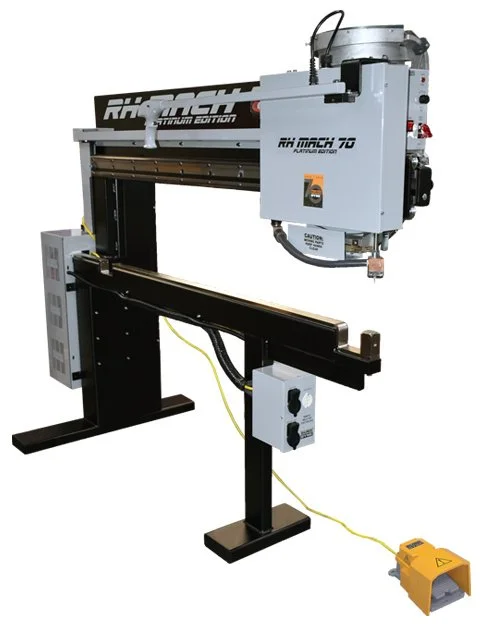

RH MACH70 HI-CAP PINSPOTTER
DESCRIPTION:
THE DURO DYNE RH MACH 70 PINSPOTTER FEATURES A REDESIGNED TRANSFORMER FOR A WIDER RANGE OF WELDING CAPABILITIES, A HEAVY-DUTY VIBRATOR BOWL FOR AUTOMATIC PIN FEEDING, AND THE ABILITY TO WELD INSULATION PINS UP TO 4 INCHES LONG. THE ROLLING-HEAD DESIGN ALLOWS THE OPERATOR TO MOVE THE WELDING TROLLEY INSTEAD OF THE DUCTWORK, REDUCING MATERIAL HANDLING AND IMPROVING PRODUCTIVITY. THE MACHINE ALSO INCLUDES A TDC/TDF NOTCH FOR DUCTWORK AND CAN BE CONVERTED TO A HANDHELD PINSPOTTER WITH AN OPTIONAL GUN AND GROUND CABLE KIT.
SPECIFICATIONS:
TYPE: ROLLING HEAD AUTOMATIC PINSPOTTER
WELDING CAPACITY: UP TO 4" INSULATION PINS ON 18-GAUGE SHEET METAL
AUTOMATIC FEED CAPACITY: 0.5" TO 2" PINS
VIBRATOR BOWL CAPACITY: APPROXIMATELY 1,000 ONE-INCH PINS
THROAT DEPTH: 60"
INPUT VOLTAGE: 230V, 60 HZ, SINGLE PHASE
ELECTRICAL SERVICE REQUIRED: 60 AMP
AIR REQUIREMENT: 80 PSI
TRANSFORMER: MULTI-TAP TRANSFORMER WITH 8 POWER SETTINGS
CONTROLS: ADJUSTABLE WELD AND DWELL TIME CONTROLS
FEED SYSTEM: HEAVY-DUTY AUTOMATIC VIBRATOR BOWL
OPTIONAL ACCESSORIES: FOOT PEDAL, BALL TRANSFER TABLES, 10' HAND GUN AND GROUND CABLE KIT FOR HANDHELD OPERATION, MACHINERY LIFT KIT
OVERALL DIMENSIONS: WIDTH: 81", DEPTH: 34", HEIGHT: 61"
FEATURES:
FLOATING UPPER WELD TIP ASSEMBLY FOR INCREASED TIP AND CABLE LIFE
SILICONE WELD CABLE FOR IMPROVED GROUNDING AND DURABILITY
AIRLESS VIBRATOR SENSOR REDUCES NOISE AND AIR CONSUMPTION
PNEUMATIC BRAKE LOCKS ROLLING ASSEMBLY DURING WELD CYCLE
ELECTRONIC FEED-TRACK SENSOR MAINTAINS PROPER PIN FEED
PRECISION HARDENED TRACK SYSTEM FOR SMOOTH TROLLEY MOVEMENT
LED LIGHT BAR
TDC/TDF DUCT NOTCH BUILT INTO SUPPORT BAR
AUXILIARY GUN AND GROUND CABLE CONNECTION FOR HANDHELD WELDING CAPABILITY
CONDITION: NEW
TYPE: PINSPOTTER
MANUFACTURER: DURO DYNE
MODEL: RH MACH 70
