NEW TK 1630 SQUARE TO ROUND BRAKE
TIN KNOCKER TK 1630 SQUARE TO ROUND BRAKE. THIS AIR-OPERATED MACHINE IS BUILT FOR HVAC SHOPS AND PRODUCES CONSISTENT, PROFESSIONAL SQUARE-TO-ROUND DUCT FITTINGS IN LESS TIME AND WITH LESS EFFORT THAN A MANUAL HAND BRAKE. IT FORMS BOTH OFFSET AND CENTERLINE SQUARE-TO-ROUNDS, AND A QUICK PIVOT RELEASE HANDLE SPEEDS UP BLADE ADJUSTMENT. THE ERGONOMIC DESIGN MEANS NO BENDING OVER A HAND BRAKE, AND THE FORMING BLADE IS FULLY GUARDED WITH SAFETY GLASS TO KEEP HANDS CLEAR OF PINCH POINTS. IT RUNS ON STANDARD SHOP AIR AT 90-120 PSI. MAXIMUM CAPACITY: 16 GA MILD STEEL. DIMENSIONS: 33 INCHES X 71 INCHES X 38 INCHES. WEIGHT: 162 LBS.
Condition: NEW
Type: SQUARE TO ROUND BRAKE
Manufacturer: TIN KNOCKER
Model: 1630
NEW TIN KNOCKER 1014 HYDRAULIC BRAKE. THIS HYDRAULIC BRAKE BRINGS POWER, STRENGTH AND REPEATABILITY TO ANY SHOP, WORKING AS EITHER A BOX AND PAN FINGER BRAKE OR A STRAIGHT BRAKE, WITH AN ATTACHABLE STRAIGHT NOSE BAR INCLUDED. IT BENDS UP TO 14 GA (2 MM) MILD STEEL AT 10 FT, WITH A MAXIMUM BENDING LENGTH OF 120 INCHES. AN ELECTRIC FOOT SWITCH CLAMPS AND UNCLAMPS THE TOP LEAF, FREEING THE OPERATOR TO LOAD AND UNLOAD MATERIAL, AND THE BEND ANGLE DIAL DELIVERS CONSISTENT, REPEATABLE BENDS. BUILT FOR BOTH MANUFACTURING AND MAINTENANCE ENVIRONMENTS, IT IS A RELIABLE, HEAVY-DUTY ADDITION TO ANY METAL-FORMING OPERATION. FINGERS: 6 AT 3 INCHES, 10 AT 4 INCHES, 10 AT 5 INCHES AND 2 AT 6 INCHES, 28 FINGERS IN TOTAL. ELECTRICAL: 3 HP, 3-PHASE, 230V, 15A. DIMENSIONS: APPROX. 150 INCHES X 48 INCHES X 57 INCHES. SHIPPING WEIGHT: 5,500 LBS. STANDARD EQUIPMENT INCLUDES A REMOVABLE STRAIGHT NOSE BAR, 28 BOX AND PAN FINGERS WITH HARDENED TOOLING, A BOLTED BOTTOM BAR, ANGLE BAR AND INSERT BAR, A COMPACT HYDRAULIC POWER UNIT WITH DIRECT PUMP AND OIL LEVEL SIGHT GAUGE, AN ELECTRIC FOOT SWITCH FOR CLAMPING, AND A BACK GAUGE WITH INCHES AND CM SCALES AND SHEET SUPPORT RODS. CONTROLS AND ADJUSTMENTS INCLUDE A BEND ANGLE DIAL WITH LIMIT SWITCH, A MATERIAL THICKNESS DIAL FOR FASTER CLAMP PRESSURE SETUP, ADJUSTABLE CLAMP PRESSURE WITH MECHANICAL OVERLOCK, ADJUSTABLE TOP LEAF OPEN HEIGHT, A TWO-POSITION BENDING LEAF ANGLE BAR, AND A CONTROL PANEL WITH KEY SWITCH, LEAF UP AND DOWN, CLAMP AND UNCLAMP, MOTOR START, AUTO CYCLE AND EMERGENCY STOP.
Condition: UNKNOWN
Type: HYDRAULIC BRAKE
Manufacturer: TIN KNOCKER
Model: 1014
Closes up to 16 Gauge sheet metal pittsburgh. Built to exact specifications. Precision machined parts from cast steel and aluminum - heat treated for longevity.
Condition: NEW
Type: PITTSBURGH
Manufacturer: TIN KNOCKER
Tin Knocker's affordable, versatile 30" bar folder uses one motion to clamp and fold to a desired angle. The Tin Knocker TK No. 30 bar folder is easy to adjust with an internal back gauge which allows for quick flange width selection. TK No. 30 Bar Folder Specifications:
Capacity:
22 Gauge Mild Steel Sheet Metal Maximum Bend Length:
30"Flange Width Gauging Range:
1/8"– 1"Dimensions:
48"x20"x13"Weight:
334 lbs. Optional stand is also available
Condition: NEW
Type: BAR FOLDER
Manufacturer: TIN KNOCKER
Model: TK NO.30

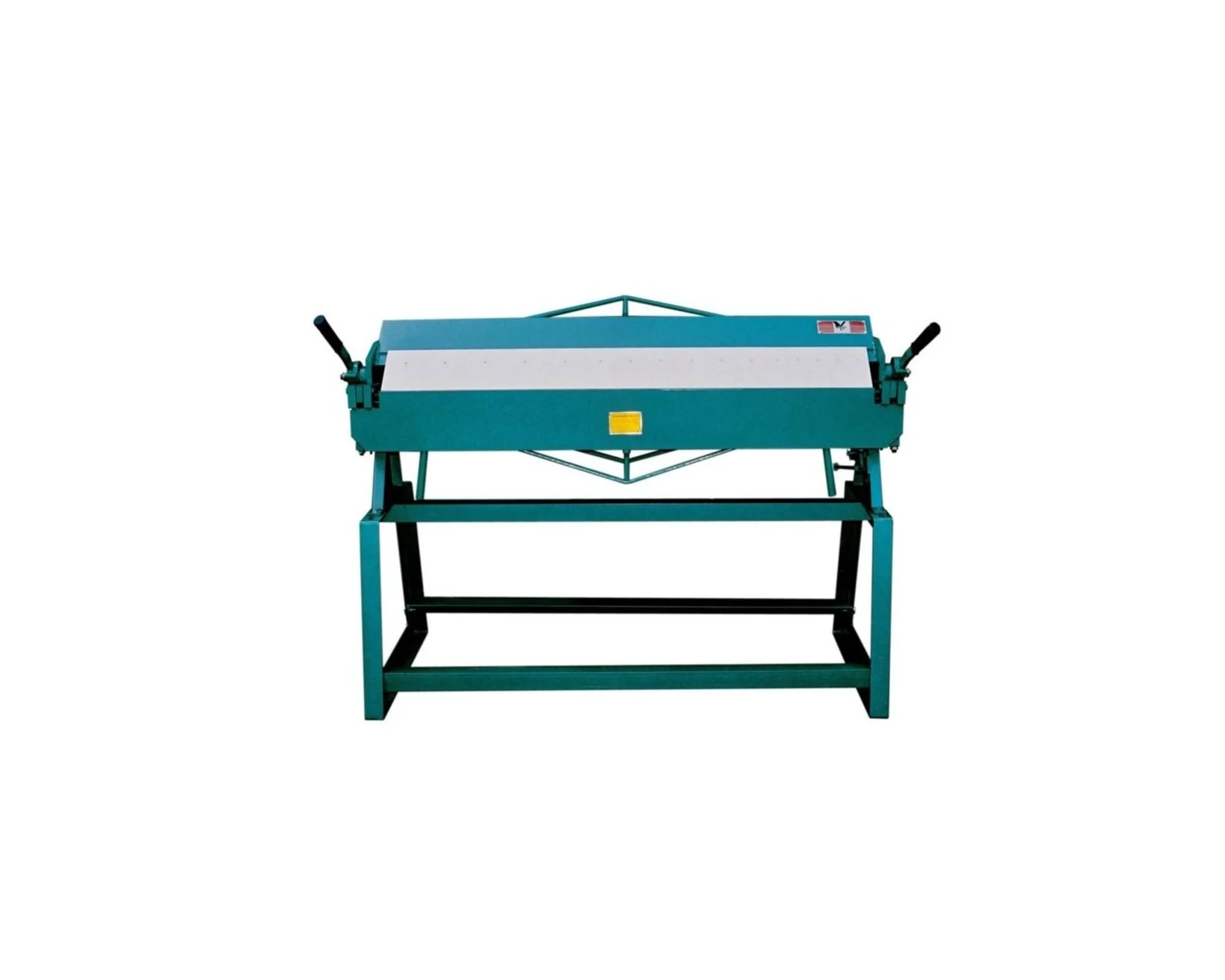

The TK box and pan brakes are made of all steel welded construction, with adjustable truss bars and bronze bushings. The brakes come with removable apron angle and apron insert, permitting. 25" (6. 35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends. TK 2248 Box & Pan Brake Specifications:
Capacity:
22 Ga. Bend Length:
48”Max Beam Lift:
7/8”Max box Depth:
3”Min. Reverse Bend:
5/16Min. Flange:
3/8”Dimensions:
Approx. 64”L x 28” W x 32”H)Weight:
Approx. 356 lbs. 2248 Box and Pan Brake Manual. finger brake, removable fingers, 22ga
Condition: NEW
Type: BOX AND PAN BRAKE
Manufacturer: TIN KNOCKER
The TK box and pan brakes are made of all steel welded construction, with adjustable truss bars and bronze bushings. The brakes come with removable apron angle and apron insert, permitting. 25" (6. 35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends. TK 1648 Box & Pan Brake Specifications:
Capacity:
16 Gauge Bend Length:
48"Max Beam Lift:
1. 25"Max Box Depth:
4"Min. Reverse Bend:. 25Min. Flange:
1"Finger Width:
2,3,4"Dimensions:
64"Lx28"Wx32"HWeight:
493 lbs. Box and Pan Brake Manual. finger brake, removable fingers, 16 ga
Condition: NEW
Type: BOX AND PAN BRAKE
Manufacturer: TIN KNOCKER

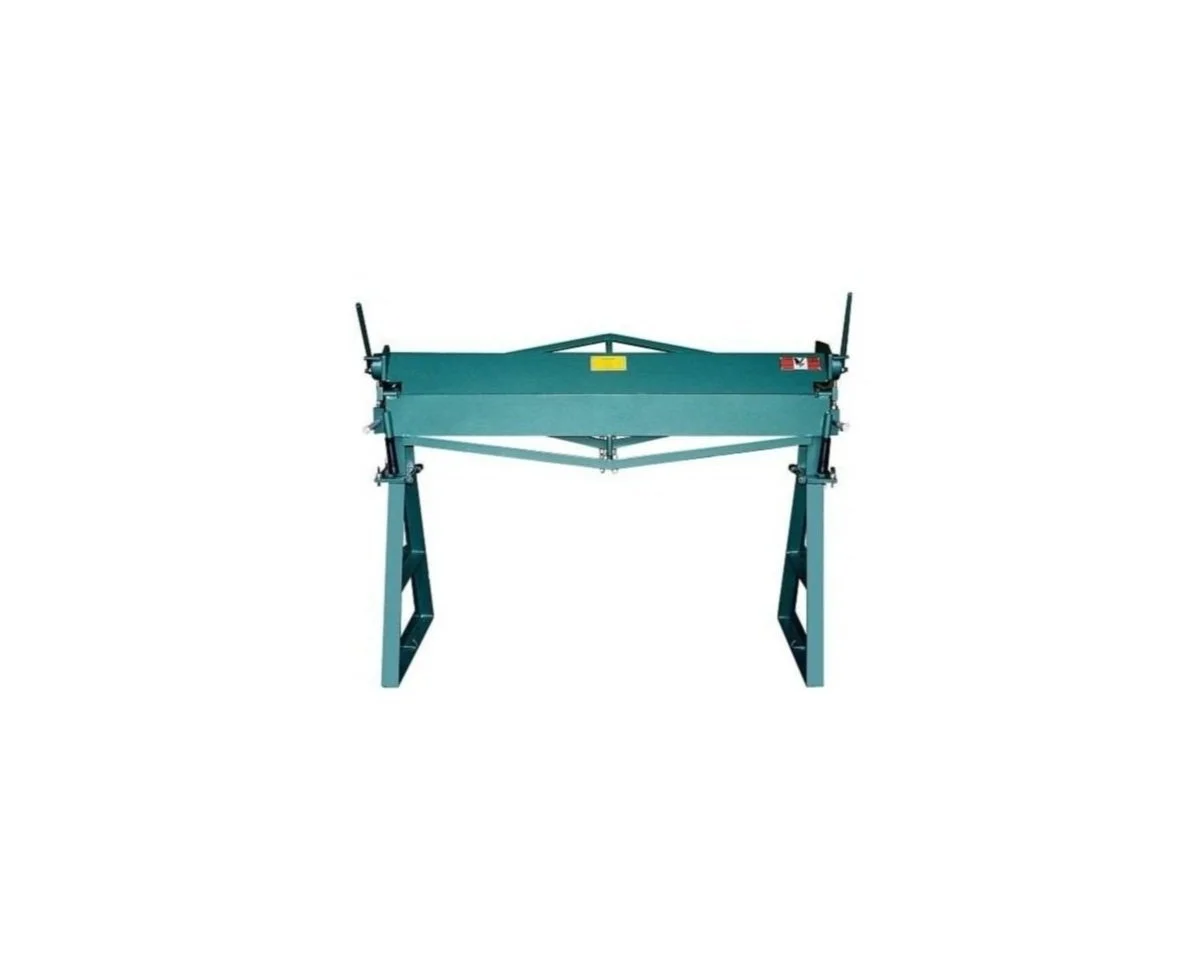

A quality portable brake, with folding legs and lift handles, this brake can easily be put on a truck and taken to the job site.
Features include:Folding Legs for Easy TransportLift Handles on Both Ends for Ease of Handling4 ft x 22 Gauge Capacity
TK 422 Portable Brake Specifications:Capacity: 22 Ga Mild Steel Sheet MetalBend Length: 48.25"Beam Lift: 1"Dimensions: 61" X 30" X30"Weight: 350 lbs
422 Portable Brake Manual, straight hand brake, leaf brake, apron brake
Condition: NEW
Type: BRAKE
Manufacturer: TIN KNOCKER
Model: 422
Great For Crossbreaking 4' Ductwork!
TK 622 Straight Brake Specifications:Capacity: 22 Ga Mild Steel Sheet MetalBend Length: 6'Included: Bolt-on Apron Angle, Floor Model LegsBeam Lift: 1 1/4"Dimensions: 78" x 34" x 32"Weight: 450 lbsDepth of Box or Pan: 2" 3 sides
622 Straight Brake Manual, 6ft, leaf brake, apron brake
Condition: NEW
Type: STRAIGHT BRAKE
Manufacturer: TIN KNOCKER
Model: 622
Tin Knocker offers industrial quality 8' sheet metal brakes of 16 gauge capacities.
Included Features:*Spring steel nose bar for long lasting durable service*Bronze bushed pivot points with lube zirks*Heavy plate fabricated frame*Full length stiffening bar to bend to capacity*Rebuildable design (brass bushings)
Model TK 816 Specifications:Capacity: 16 Ga. Mild Steel Sheet MetalBend Length: 8'1"Beam Lift: 2 1/4"Bolt On Apron Angle InclCounter Weights IncludedDimensions: 140"Lx31"Wx60"HWeight: 2480 lbsFloor Model
8ft cross brake, hand brake, leaf brake, apron brake
Condition: NEW
Type: STRAIGHT BRAKE
Manufacturer: TIN KNOCKER
Model: TK 816 LEAF BRAKE
Tin Knocker's affordable, versatile 30" bar folder uses one motion to clamp and fold to a desired angle. The Tin Knocker TK No. 30 bar folder is easy to adjust with an internal back gauge which allows for quick flange width selection. TK No. 30 Bar Folder Specifications:
Capacity:
22 Gauge Mild Steel Sheet Metal Maximum Bend Length:
30"Flange Width Gauging Range:
1/8"– 1"Dimensions:
48"x20"x13"Weight:
334 lbs. Optional stand is also available
Condition: NEW
Type: STRAIGHT BRAKE
Manufacturer: TIN KNOCKER
Model: TK 1016 LEAF BRAKE

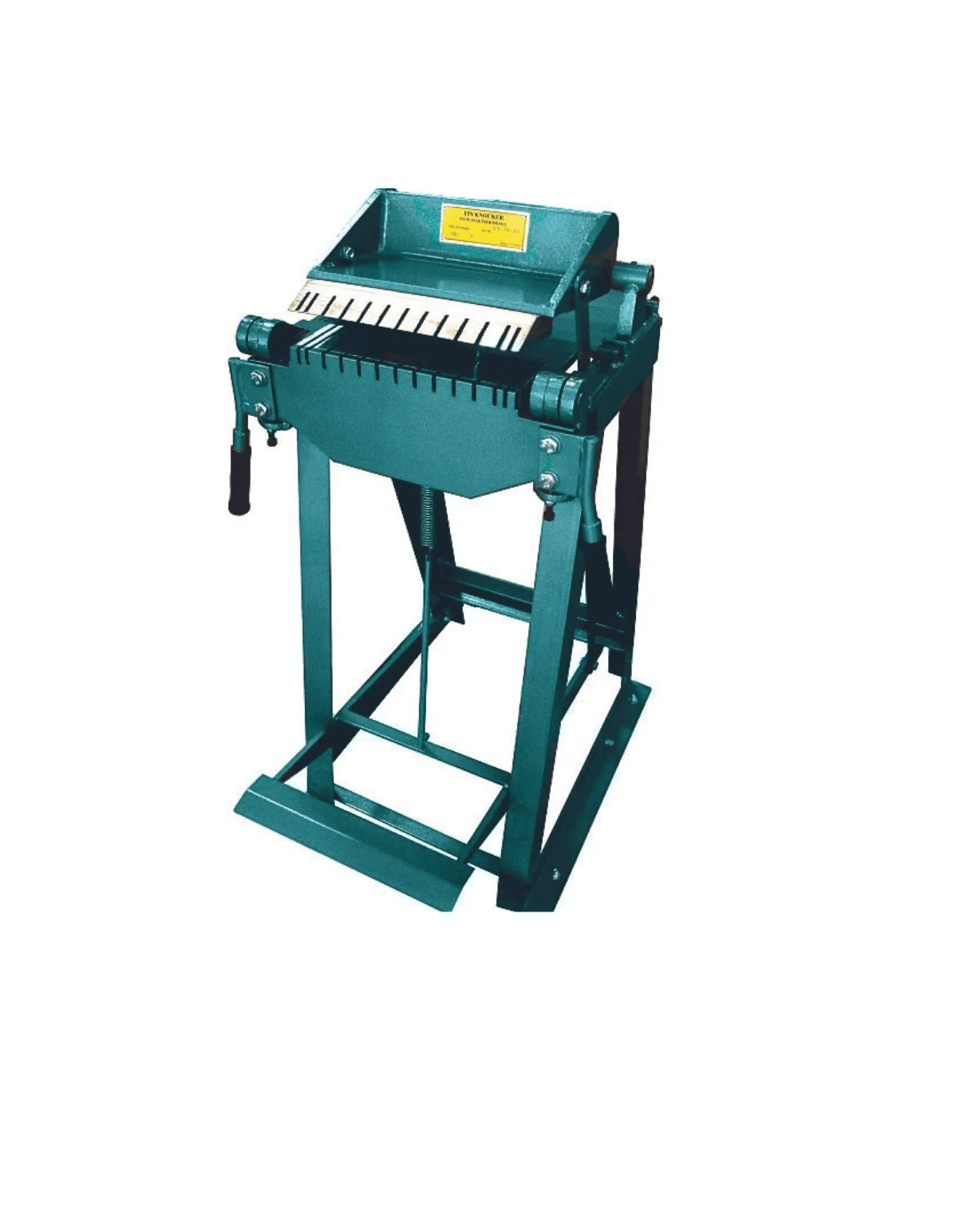

TK Letter Brake Specifications:
Capacity:
20 Ga Mild Steel Approx. Dimensions:
48”x48”x46”Approx. Footprint:
25”x22”x42”Weight:
190 lbs. letter brake, cross brake, hand brake, leaf brake, apron brake, straight brake, channel letters
Condition: NEW
Type: LETTER BRAKE
Manufacturer: TIN KNOCKER
TK 616 Universal Brake Specifications:
Capacity with lower tooling flanges:
72” x 16 gauge Capacity without lower tooling flanges, 72” x 20 gauge Lift of beam:
1. 5”Front to back ram adjustment:
1/2"A minimum reverse bend of 5/8"Mininmum flange width:
1"Finger widths:
1", 3", and 4"Lower segment tooling widths of 1", 1. 5", 4", 6", 8", 12", and 20"Upper bending beam tooling (segmented) lengths of 1", 1. 5", 4", 6", 8", 12", and 20"Maximum transverse bend in center of machine:
2"Maximum transverse bend at end of machine:
3"Footprint with counter weights:
95" x 38" x 54"Weight:
2800 lb cross brake, hand brake, leaf brake, apron brake, straight brake.
Condition: NEW
Type: UNIVERSAL BRAKE
Manufacturer: TIN KNOCKER
Model: TK 616

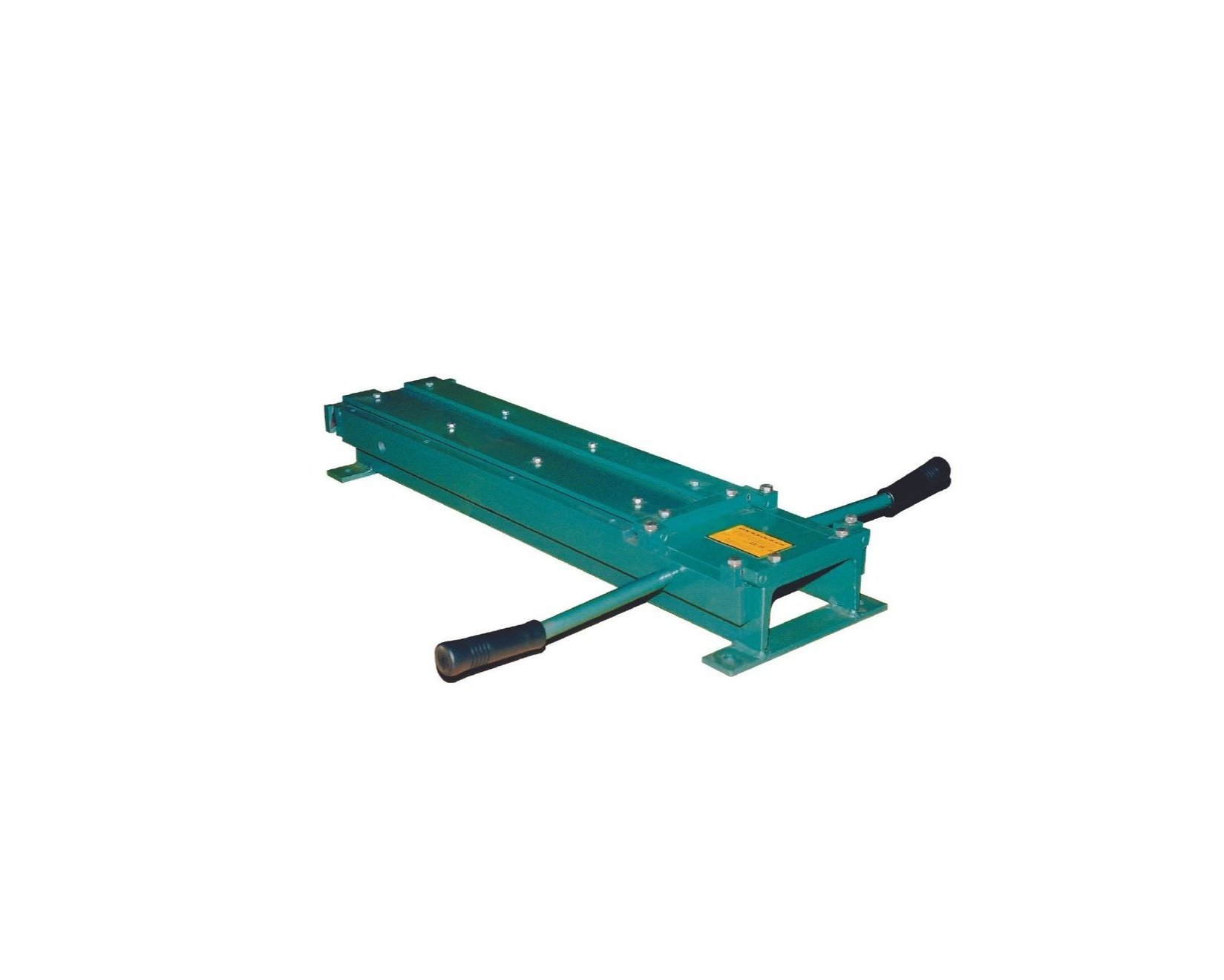

TK No. 24 Cheek
bender Specifications:
Capacity: 20 Ga Mild Steel Sheet Metal
Bend Length: 24"Note: Shims are required for 28 Ga and lighter material
Dimensions: 40"x12"x10"Weight: Approx. 96 lbs.
cheek bender, adjustable, flange, bending apron
Condition: NEW
Type: CHEEK BENDER
Manufacturer: TIN KNOCKER
Model: TK NO. 24

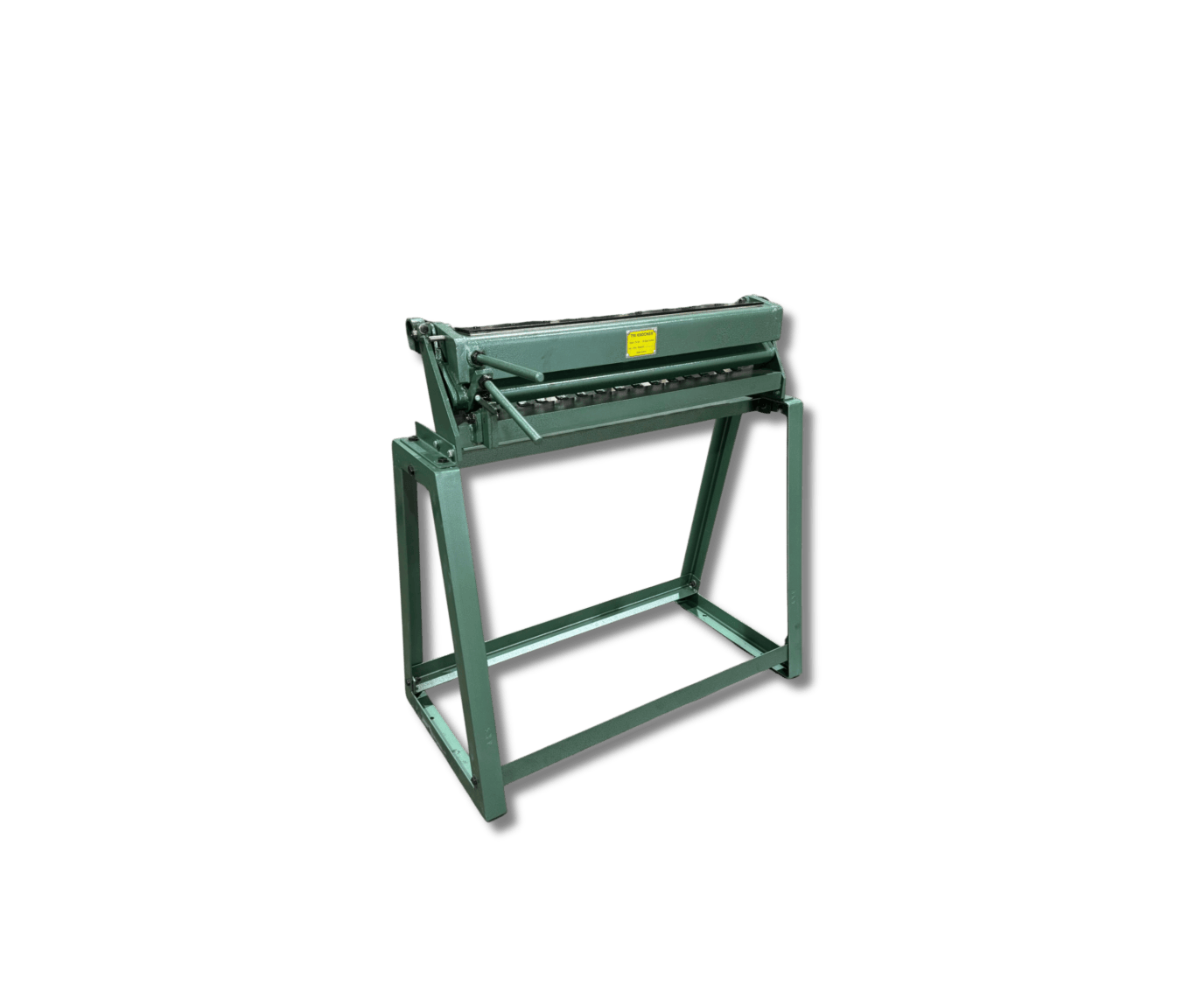

TK No. 30 Cleat Bender Specifications:
Capacity: 20 Ga Mild Steel Sheet Metal
Bend Length: 30"Cleat Depth: .500"
Dimensions: Approx. 42"x16"x20"Weight: 126 lbs. cleat bender, manually operated form uniform drive cleat edges on duct work.
Condition: NEW
Type: CLEAT BENDER
Manufacturer: TIN KNOCKER
Model: TK NO. 30

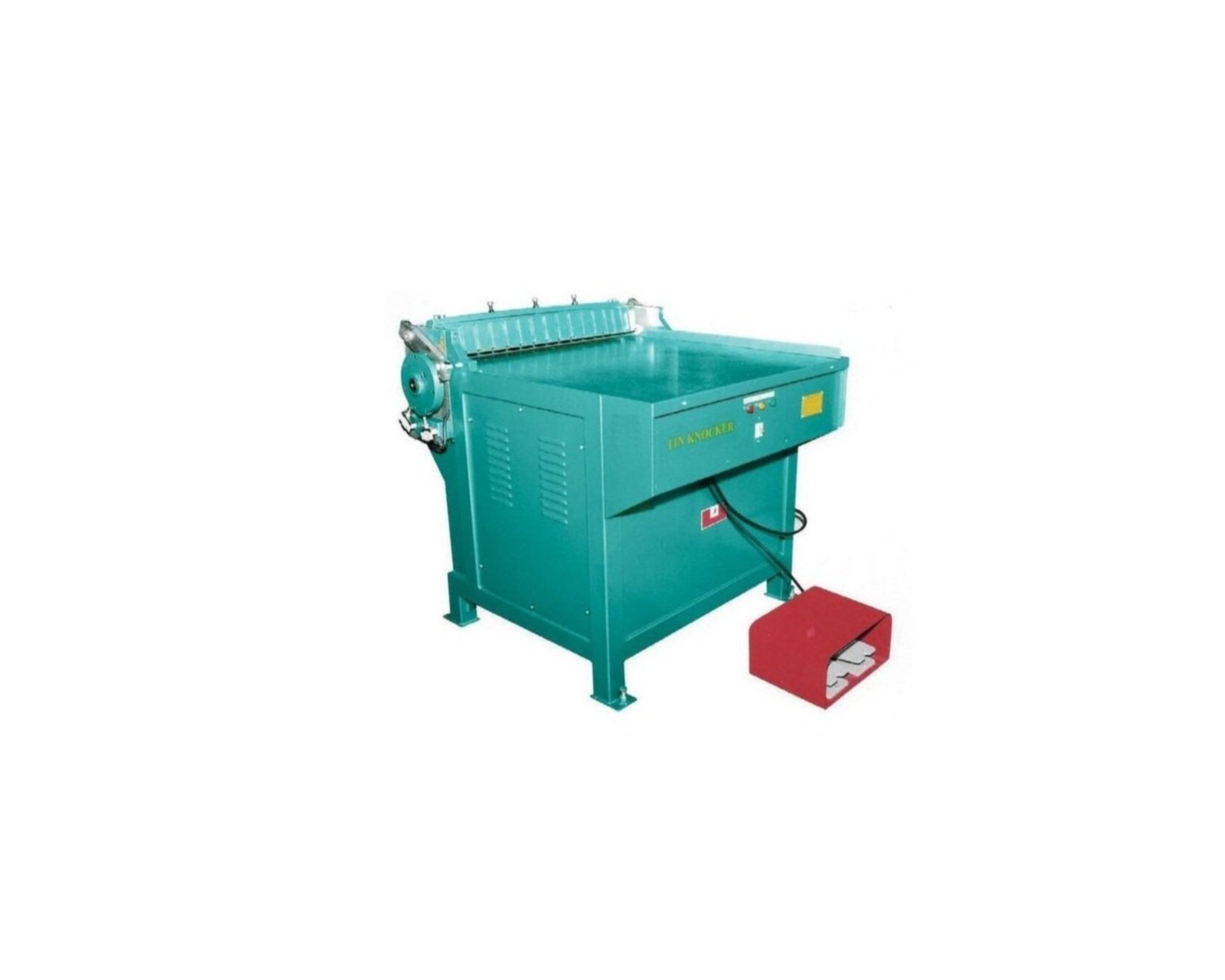

TK No. 30 Power Cleat Bender Specifications:
Maximum Capacity 22 Ga. mild steel sheet metal
Table top height or working surface height 31 inches
Table top length not including Cleat Bender 36 inches
Overall length 49 inches
Maximum width capacity 30 inches1 HP Motor for 110 Volt, single phase 60 HZ
Approximate shipping weight 650 Lbs power cleat bender, drive cleat , reverse open hem, electric
Condition: NEW
Type: CLEAT BENDER
Manufacturer: TIN KNOCKER
Model: TK NO. 30

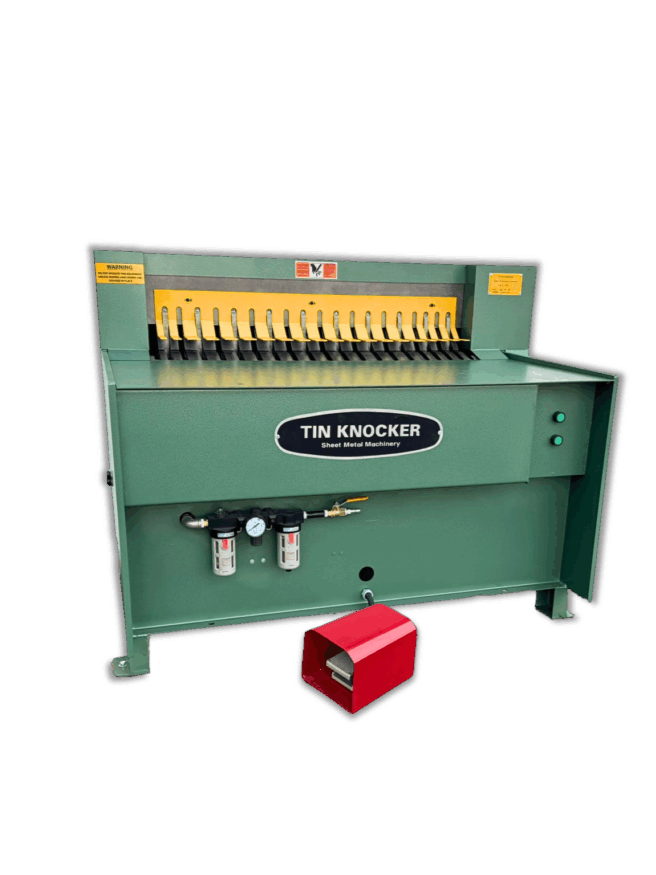

NEW TIN KNOCKER 36IN 18 GA PNEUMATIC CLEAT BENDER TK3618
Maximum Capacity: 18-gauge mild steel
Air Consumption (@ 100 PSI): <0.5 ft3/cycle
Dimensions: 40" x 49" x 39"
Working Platform Height: 29-1/4"
Approximate Shipping Weight: 1100 lbs
The Tin Knocker 3618 Power Cleat Bender is a heavy-duty, air-powered machine, designed for high-volume and high-speed production. Built for accuracy, repeatability, and long-term durability, it forms cleats on material up to 36″ wide and 18-gauge thick. The 3618 Power Cleat Bender is engineered to deliver faster cycling at maximum power—cutting cleat-forming time by nearly 50%. Ideal for demanding fabrication environments, this machine provides reliable performance, day after day.
Condition: NEW
Type: CLEAT BENDER
Manufacturer: TIN KNOCKER
Model: 36IN 18 GA
TK 1660 Duct Beader Specifications:
Capacity: 16 Ga. Mild Steel x 60" Sheet Metal Motor: 1 H.P. Electrics: 115V/1/60 Hz Dimensions: Approx. 80" x 43" x 34"Weight: 1,750 lbs Adjustable Bead Depth to 3/16" Deep5 Sets of Bead Tooling
1660 duct beader, metal duct beader, adjustable bead depth, 16 ga 60 inch
Condition: NEW
Type: DUCT BEADER
Manufacturer: TIN KNOCKER
Model: TK NO. 1660
TK 724 Combination Machine Specifications:
Capacity: 24 Ga Mild Steel Sheet Metal
Throat: 7"Includes: 5 Sets of Rolls and Gauge For: Ogee Bead, Crimping, Wiring, Burring, & Turning, & C- Clamp Pedestal Stand
UPS: UPS Capable
Dimensions: 26"x16"x12"Weight: 55 lbs
724 Combination Machine, hand rotary machine, crimper beader, deep throat machine, turning, burring, crimping, hand tools, bench mount, ogee bead
Condition: NEW
Type: COMBINATION MACHINE
Manufacturer: TIN KNOCKER
Model: TK 724

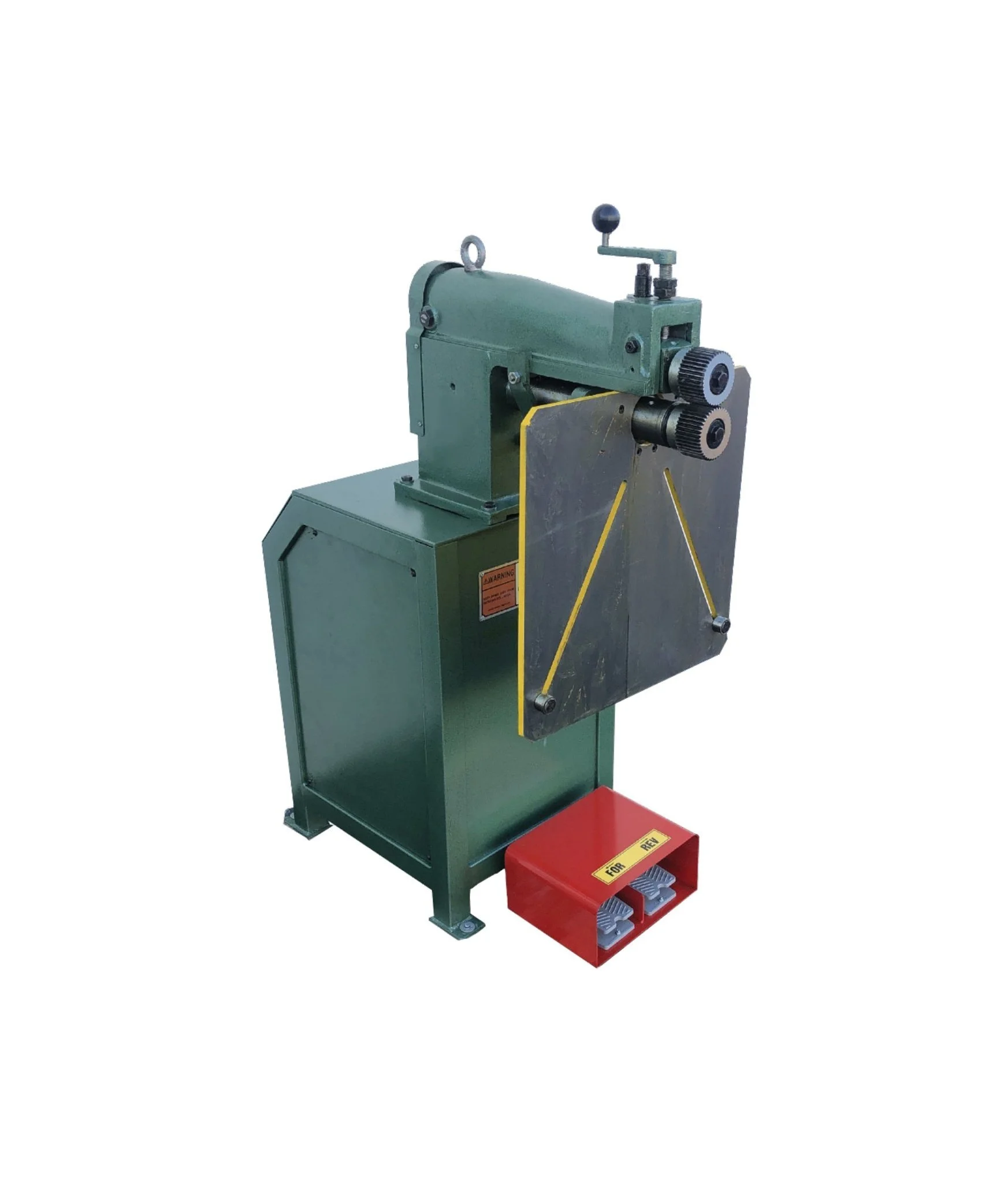

TK Power Crimper Beader Specifications:
Weight: 340 lbs
Dimensions: 39 x 52 x 14.5 in
Capacity: 18 gauge mild steel sheet metal
Throat to frame: 13"Throat to gauge: 12.25"Motor: 3/4 HP Electrics: 230V/3PH power crimper beader, hand rotary machine, crimper beader, deep throat machine, turning, burring, crimping, hand tools, bench mount, ogee bead, combo machine
Condition: NEW
Type: POWER CRIMPER BEADER
Manufacturer: TIN KNOCKER
TK manual Crimper Beader specifications:
Weight: 35 lbs
Dimensions: 26 x 16 x 12 in
Capacity: 24 ga mild steel
UPS: UPS capable
Condition: NEW
Type: CRIMPER BEADER
Manufacturer: TIN KNOCKER

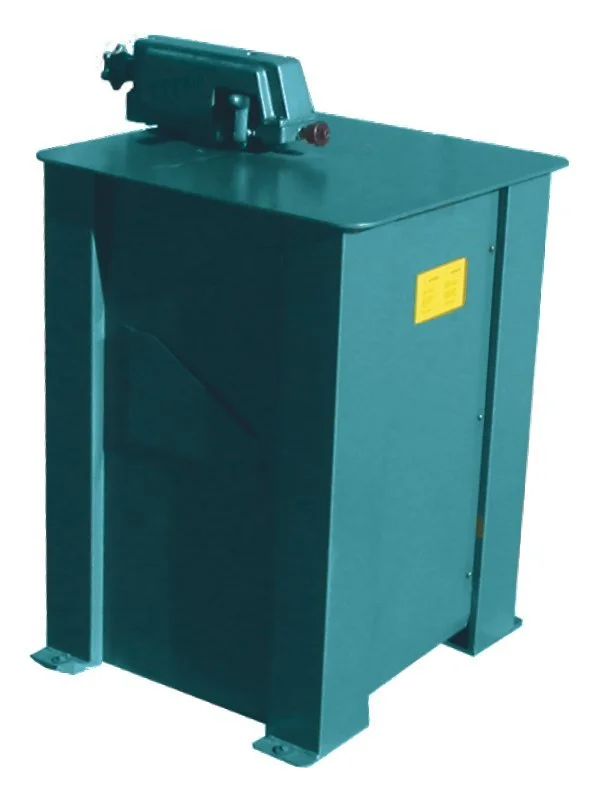

TK No. 16 Power Flanger Specifications:
Weight: 635 lbs
Dimensions: 36 x 28 x 48 in
Capacity: 16 Gauge Aluminum, Copper, Stainless Steel and Brass
Motor: 0.75 HP, 110V, Single Phase
Speed: Approx. 18' Per Minute
UPS: UPS Capable
Condition: NEW
Type: POWER FLANGER
Manufacturer: TIN KNOCKER
Model: NO. 16

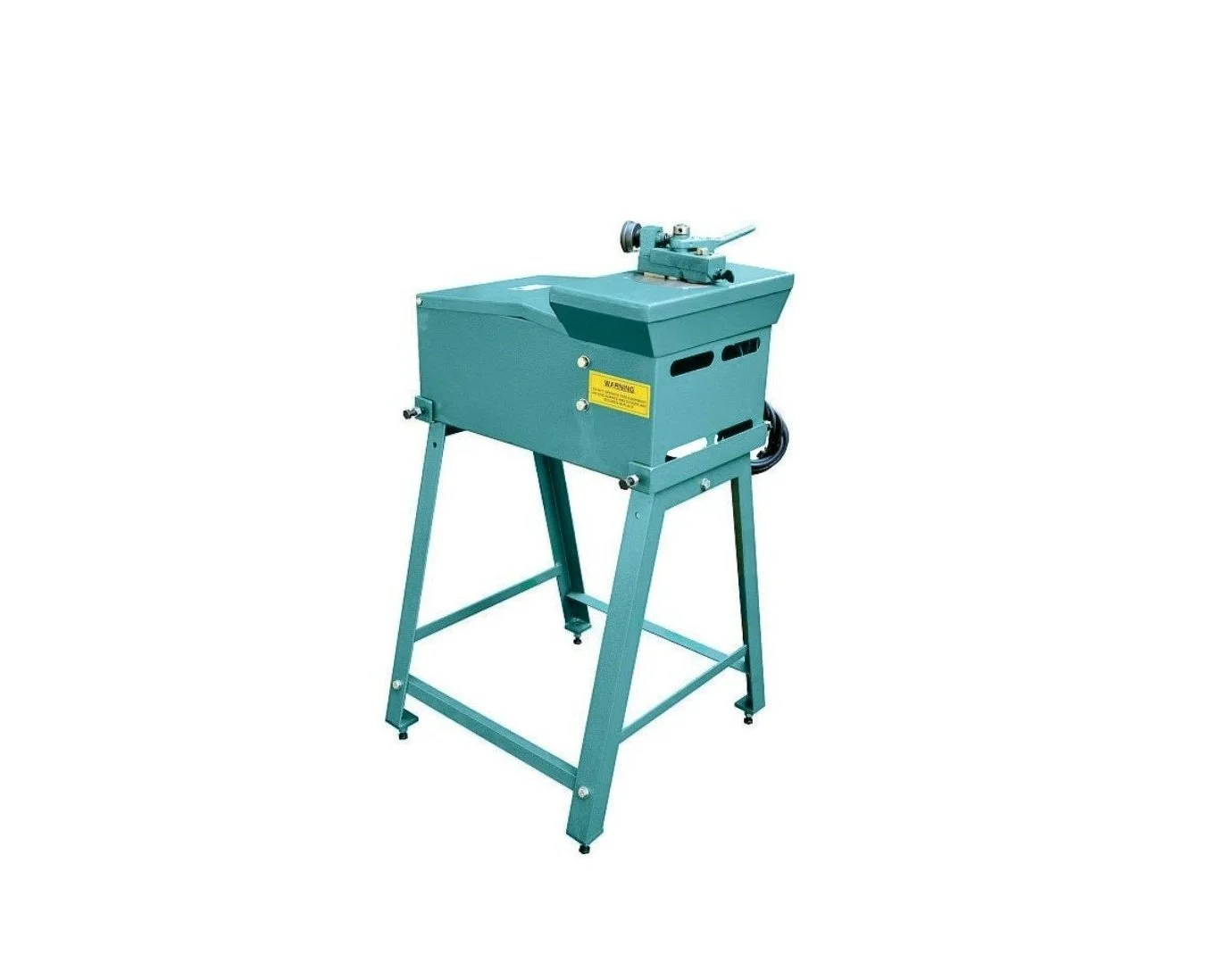

TK No. 20 Power Flanger Specifications:
Weight: 207 lbs
Dimensions: 25 x 25 x 41 in
Capacity: 20 Ga. and Lighter
Electrics: 115V/ 1 PH
Stand Is Included
Condition: NEW
Type: POWER FLANGER
Manufacturer: TIN KNOCKER
Model: NO. 20
TK Manual Flanger Specifications:
Capacity: 20 Ga x 7/32"Minimum Radius: 1 3/4"UPS: UPS Capable
Dimensions: 26"x16"x12"Weight: 35 lbs
Condition: NEW
Type: FLANGER
Manufacturer: TIN KNOCKER
Model: MANUAL

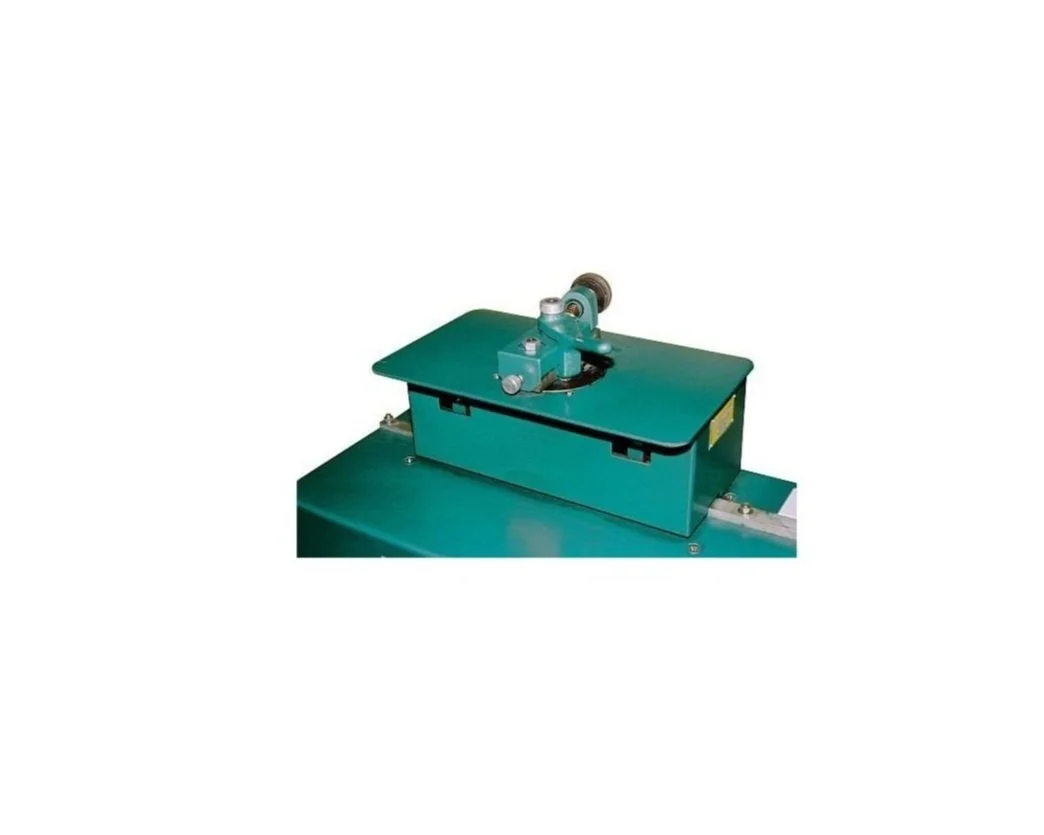

Tin Knocker 20 and 24 Ga Flanging Attachment
Enhance your sheet metal fabrication capabilities with the Tin Knocker 20 and 24 Gauge Flanging Attachment, designed for precision, speed, and ease of use. This heavy-duty yet compact tool is engineered specifically to produce clean, consistent flanges on 20 and 24 gauge sheet metal, making it ideal for HVAC shops, ductwork, and general metalworking applications.
Key Features:
Precision Flanging: Delivers uniform 1/4" flanges quickly and efficiently.
Dual-Gauge Compatibility: Optimized for use with both 20 GA and 24 GA sheet metal.
Rugged Construction: Built to withstand daily shop use with durable, high-quality components.
Easy Installation: Simple to mount and compatible with most bench models and machines.
Increased Productivity: Cuts down on manual labor and ensures consistent results with minimal operator effort.
Whether you're producing fittings, elbows, or custom ductwork, the Tin Knocker Flanging Attachment is the perfect addition to your metal forming toolkit — delivering professional results every time.
Condition: NEW
Type: FLANGING ATTACHMENT
Manufacturer: TIN KNOCKER
Model: 20 AND 24 GA
TK Liner Table Specifications:
Capacity:
Roll width:
60” Max Roll Diameter:
40” Max Liner Thickness:
½ to 2”Liner Density:
1 ½ to 3 lbs. Features:
Payoff reel, adjustable width Quick cut slitter, length & width Embedded scale for fast slitting to width Cuts Width & Length Shipping Information:
270 lbs. 79" x 28" x 24"
Condition: NEW
Type: LINER TABLE
Manufacturer: TIN KNOCKER
TK Edge Notcher Specifications:
Capacity: 20 Ga Mild Steel Sheet Metal
Motor: 1/3 HP Electrics: 110V/1PH/60Hz AC Depth of Notch: 0 to 3/4"Width of Notch: 3/16"Spacing: 3/4" to 1-7/16"Speed: Variable Minimum 18 FPM Approx. Overall Dimensions: 26"x16.5"x13"Approx.: 290 lbs.
Condition: NEW
Type: NOTCHER
Manufacturer: TIN KNOCKER
Model: EDGE

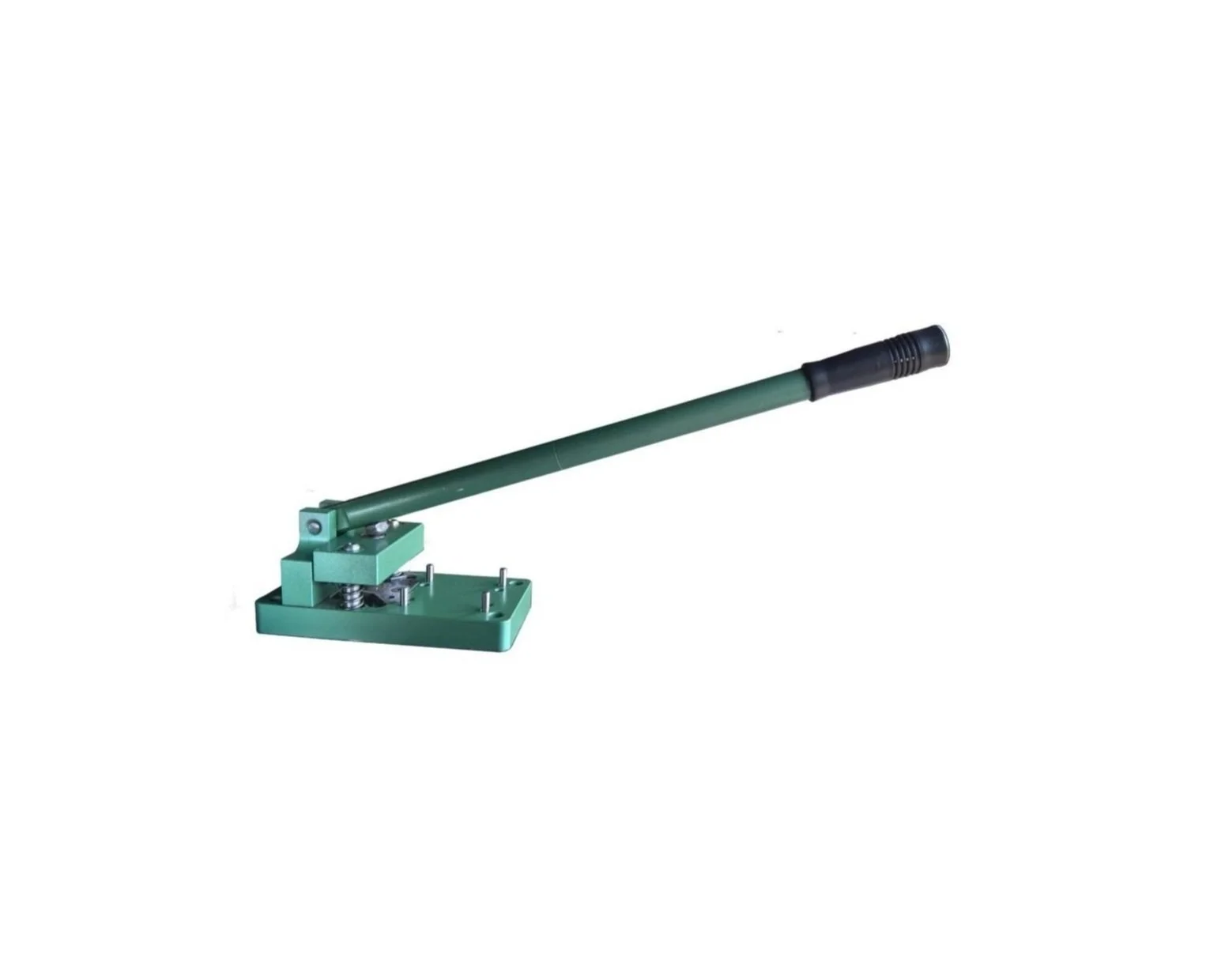

TK Drive Cleat Notcher Specifications:
Capacity:
22-gauge mild steel sheet metal Machine Dimension:
21” x 4” x 10”Shipping Dimension:
11” x 4” x 6”Approximate Weight:
18 lbs.
Condition: NEW
Type: NOTCHER
Manufacturer: TIN KNOCKER
Model: DRIVE
TK 1655 Manual Notcher Specifications:
Weight: 170 lbs
Capacity: 16 Ga Mild Steel
Blade Length: 5"Angle: 90 Degrees
**Optional Stand Available
Condition: NEW
Type: NOTCHER
Manufacturer: TIN KNOCKER
Model: 1655
TK 1016 Notcher Specifications:
Weight:
880 lbs Dimensions:
79 x 36 x 36 in Capacity:
16 – 28 gauge mild steel No. Notching Heads:
3 V and 2 corner, for 5 total. V Notch. 1 ½” max Motor:
3 HP Electrics:
Dual Voltage, 115- 230/1/60, 1800 RPM Optional Heads Available For TDC & TDF Notching
Condition: NEW
Type: NOTCHER
Manufacturer: TIN KNOCKER
Model: TK 1016
NEW TK FLEX DUCT CRADLE & SHEAR
THE TIN KNOCKER FLEX CRADLE & SHEAR MAKES WORKING WITH FLEX CONNECTOR EASY. IT HOLDS AND DISPENSES CONNECTOR TO LENGTH FOR QUICK, ACCURATE SHEARING.
THE CRADLE HOLDS THREE ROLLS OF 4X4X4 FLEX CONNECTOR OR VAN RAIL, WITH BALL BEARING ROLLERS FOR SMOOTH DISPENSING AND A STRAIGHTENING ROLLER INCLUDED. HEAVY-DUTY CASTERS MAKE IT EASY TO MOVE AROUND THE SHOP, AND THE INCLUDED SHEAR HAS A 30″ HANDLE WITH A SAFETY LOCKOUT PIN.
