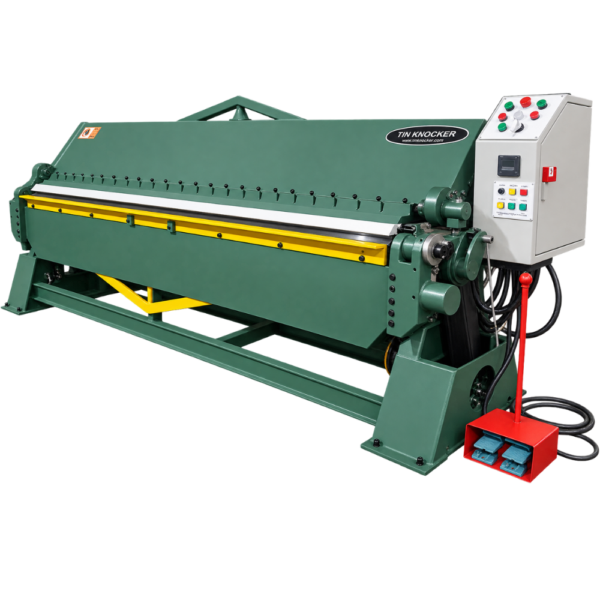

NEW TIN KNOCKER 1014 HYDRAULIC BRAKE. THIS HYDRAULIC BRAKE BRINGS POWER, STRENGTH AND REPEATABILITY TO ANY SHOP, WORKING AS EITHER A BOX AND PAN FINGER BRAKE OR A STRAIGHT BRAKE, WITH AN ATTACHABLE STRAIGHT NOSE BAR INCLUDED. IT BENDS UP TO 14 GA (2 MM) MILD STEEL AT 10 FT, WITH A MAXIMUM BENDING LENGTH OF 120 INCHES. AN ELECTRIC FOOT SWITCH CLAMPS AND UNCLAMPS THE TOP LEAF, FREEING THE OPERATOR TO LOAD AND UNLOAD MATERIAL, AND THE BEND ANGLE DIAL DELIVERS CONSISTENT, REPEATABLE BENDS. BUILT FOR BOTH MANUFACTURING AND MAINTENANCE ENVIRONMENTS, IT IS A RELIABLE, HEAVY-DUTY ADDITION TO ANY METAL-FORMING OPERATION. FINGERS: 6 AT 3 INCHES, 10 AT 4 INCHES, 10 AT 5 INCHES AND 2 AT 6 INCHES, 28 FINGERS IN TOTAL. ELECTRICAL: 3 HP, 3-PHASE, 230V, 15A. DIMENSIONS: APPROX. 150 INCHES X 48 INCHES X 57 INCHES. SHIPPING WEIGHT: 5,500 LBS. STANDARD EQUIPMENT INCLUDES A REMOVABLE STRAIGHT NOSE BAR, 28 BOX AND PAN FINGERS WITH HARDENED TOOLING, A BOLTED BOTTOM BAR, ANGLE BAR AND INSERT BAR, A COMPACT HYDRAULIC POWER UNIT WITH DIRECT PUMP AND OIL LEVEL SIGHT GAUGE, AN ELECTRIC FOOT SWITCH FOR CLAMPING, AND A BACK GAUGE WITH INCHES AND CM SCALES AND SHEET SUPPORT RODS. CONTROLS AND ADJUSTMENTS INCLUDE A BEND ANGLE DIAL WITH LIMIT SWITCH, A MATERIAL THICKNESS DIAL FOR FASTER CLAMP PRESSURE SETUP, ADJUSTABLE CLAMP PRESSURE WITH MECHANICAL OVERLOCK, ADJUSTABLE TOP LEAF OPEN HEIGHT, A TWO-POSITION BENDING LEAF ANGLE BAR, AND A CONTROL PANEL WITH KEY SWITCH, LEAF UP AND DOWN, CLAMP AND UNCLAMP, MOTOR START, AUTO CYCLE AND EMERGENCY STOP.
Condition: UNKNOWN
Type: HYDRAULIC BRAKE
Manufacturer: TIN KNOCKER
Model: 1014
NEW TIN KNOCKER 1014 HYDRAULIC BRAKE. THIS HYDRAULIC BRAKE BRINGS POWER, STRENGTH AND REPEATABILITY TO ANY SHOP, WORKING AS EITHER A BOX AND PAN FINGER BRAKE OR A STRAIGHT BRAKE, WITH AN ATTACHABLE STRAIGHT NOSE BAR INCLUDED. IT BENDS UP TO 14 GA (2 MM) MILD STEEL AT 10 FT, WITH A MAXIMUM BENDING LENGTH OF 120 INCHES. AN ELECTRIC FOOT SWITCH CLAMPS AND UNCLAMPS THE TOP LEAF, FREEING THE OPERATOR TO LOAD AND UNLOAD MATERIAL, AND THE BEND ANGLE DIAL DELIVERS CONSISTENT, REPEATABLE BENDS. BUILT FOR BOTH MANUFACTURING AND MAINTENANCE ENVIRONMENTS, IT IS A RELIABLE, HEAVY-DUTY ADDITION TO ANY METAL-FORMING OPERATION. FINGERS: 6 AT 3 INCHES, 10 AT 4 INCHES, 10 AT 5 INCHES AND 2 AT 6 INCHES, 28 FINGERS IN TOTAL. ELECTRICAL: 3 HP, 3-PHASE, 230V, 15A. DIMENSIONS: APPROX. 150 INCHES X 48 INCHES X 57 INCHES. SHIPPING WEIGHT: 5,500 LBS. STANDARD EQUIPMENT INCLUDES A REMOVABLE STRAIGHT NOSE BAR, 28 BOX AND PAN FINGERS WITH HARDENED TOOLING, A BOLTED BOTTOM BAR, ANGLE BAR AND INSERT BAR, A COMPACT HYDRAULIC POWER UNIT WITH DIRECT PUMP AND OIL LEVEL SIGHT GAUGE, AN ELECTRIC FOOT SWITCH FOR CLAMPING, AND A BACK GAUGE WITH INCHES AND CM SCALES AND SHEET SUPPORT RODS. CONTROLS AND ADJUSTMENTS INCLUDE A BEND ANGLE DIAL WITH LIMIT SWITCH, A MATERIAL THICKNESS DIAL FOR FASTER CLAMP PRESSURE SETUP, ADJUSTABLE CLAMP PRESSURE WITH MECHANICAL OVERLOCK, ADJUSTABLE TOP LEAF OPEN HEIGHT, A TWO-POSITION BENDING LEAF ANGLE BAR, AND A CONTROL PANEL WITH KEY SWITCH, LEAF UP AND DOWN, CLAMP AND UNCLAMP, MOTOR START, AUTO CYCLE AND EMERGENCY STOP.
Condition: UNKNOWN
Type: HYDRAULIC BRAKE
Manufacturer: TIN KNOCKER
Model: 1014
