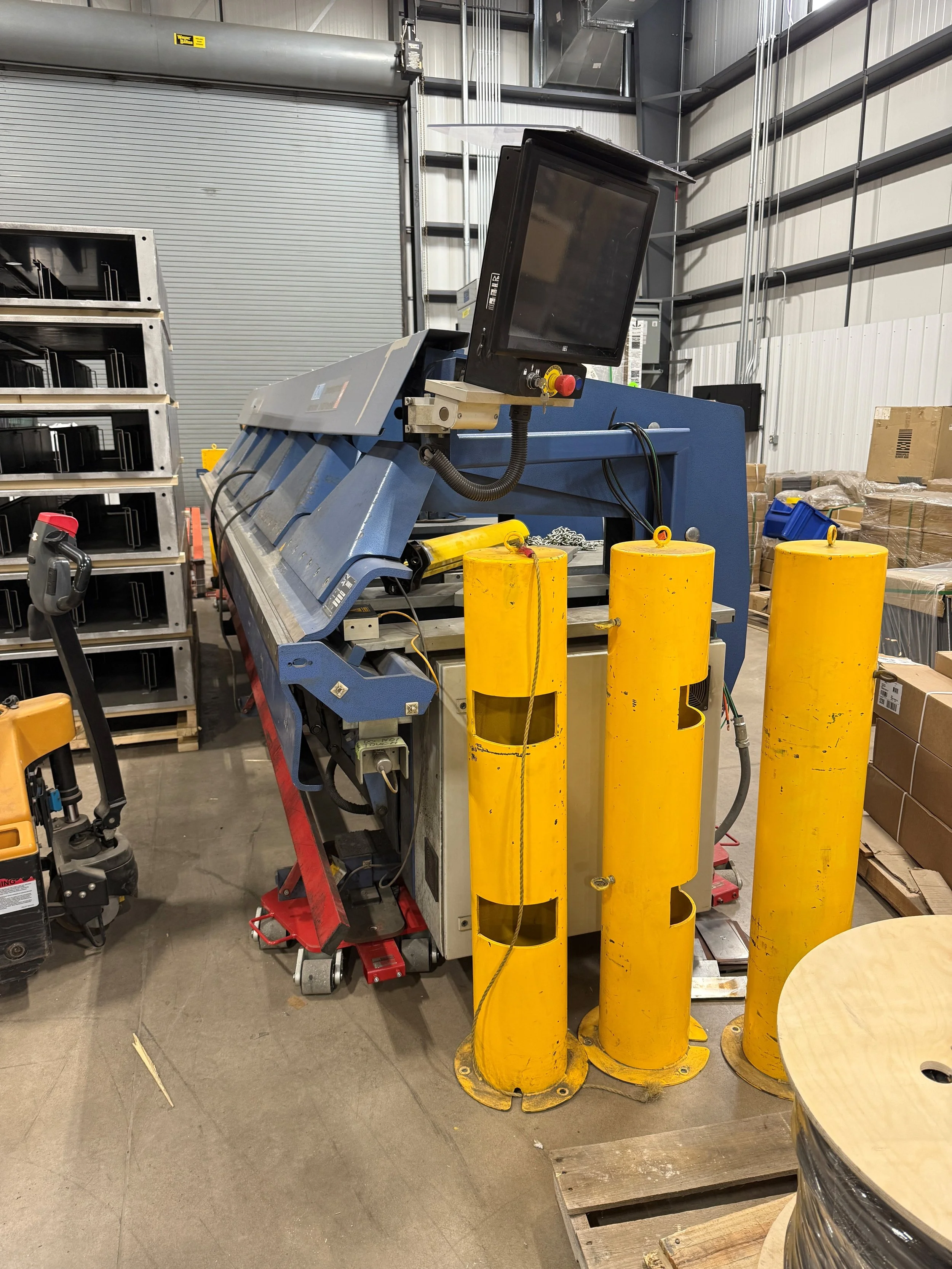

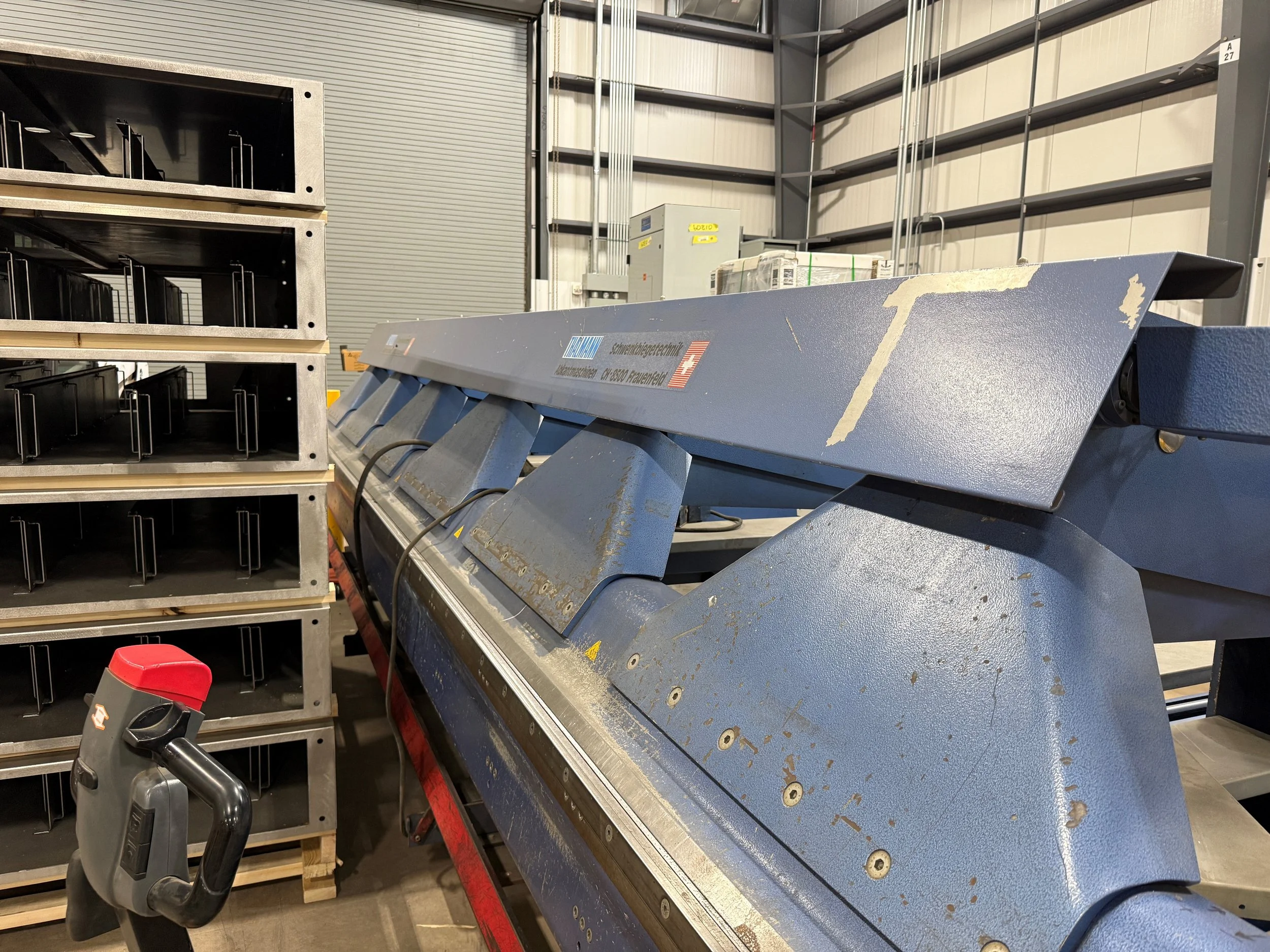

USED 21FT THALMANN CNC FOLDING BRAKE MACHINE

USED 21FT THALMANN CNC FOLDING BRAKE MACHINE

FOLDING MACHINE

BRAND: THALMANN (SWISS)

TYPE:THAKO 30-6.2M 16GA

SN:06480/P03235

YEAR:2013

MODEL SERIES:THAKO 30 - 6.2 M - AMS

BUILD SERIES:AB-SE-6-300-6S-PVVHY-AMS

MODEL YEAR:2013

MACHINE DIMENSIONS:

LENGTH: 7300MM (287.4 IN)

WIDTH: 1600MM (63 IN)

HEIGHT: 1800MM (70.87 IN)

WEIGHT: 6000KG (13200 LBS)

TECHNICAL DATA:

WORKING LENGTH:6200MM (244.094 IN)

PROJECTION (WORKING DEPTH):1000MM (39.37 IN)

BACK GAUGE RANGE:5MM - 1000MM (.1196IN-39.37

WORKING HEIGHT:900MM (35.43IN)

BENDING BEAM WIDTH:15/27MM (.59IN-1.06IN)

MAX BENDING ANGLE:143 DEG

NOISE LEVEL:MAX 62 DECIBELS

SPEEDS:         

BENDING BEAM:143 DEG IN 5 SEC

CLAMP BAR 100MM/SEC

BACK GAUGE:200 MM/SEC

POWER REQUIREMENTS:

TOTAL OUTPUT:18.5 KW

VOLTAGE:3 PHASE 480V +N +E

FREQUENCY:60HZ

FUSED PROTECTION: 60A

INCLUDED WITH PURCHASE:

LEUZE ELECTRONIC MLD 500 LIGHT CURTAIN TRANSMITTER AND RECEIVER COLUMN

(WILL NEED TWO MIRROR COLUMNS P/N UMC-1002-S2)

LIGHT CURTAIN PROTECTORS

NEW AMS HMI AS OF SEPTEMBER 2024

MISC SPARE PARTS

OPERATORS MANUALS

Condition: USED

Type: CNC FOLDING BRAKE

Manufacturer: THALMANN
